Welded Wire Mesh for Runway Enclosures, Draining Rack, Fruit Drying
Screen
Description:
Hot dip galvanized welded wire mesh is made of high quality low
carbon steel wire through automatic digital controlled welding
equipments. It is welded with plain steel wire, then hot dipped
galvanizing after welding. The finished products are level and flat
with sturdy structure, it has well erosion-resisting and rustproof
properties.
The welded wire mesh is welded by excellent low-carbon steel wires
and passivated and plasticized through cold plating
(electroplating), hot dipping and PVC plastic coating. With flat
surface, even mesh count, firm welding spots and stable structure,
it features its strong completeness, partial good machining
performance, stability, excellent corrosion resistance and rush
prevention.
It is made from choice plain steel wire and stainless steel wire,
which shows good corrosion-resistance and oxidation-resistance,
widely used for poultry houses, egg baskets, runway enclosures,
draining racks, porch guards, rat-proofing, safety guards on
machines, animal and plant pens and shelves, etc
Materials & Finishes
1.Welded Wire Mesh Material: Low carbon steel wire,Stainless steel
wire
2.Welded Wire Mesh Type:
Electro galvanized after or before welded wire mesh
Hot dippd galvanized after or before welded wire mesh
PVC coated welded wire mesh
Stainless steel welded wire mesh
3. Advantage: good corrosion resistance and oxidation resistance
4. Application: It is very popular in breeding industry: Can be made into various
animal cages or fences for breeding with its excellent
anti-corrosion property. The zinc coating offers a kind of
decorative outlook with its flat surface.
With first-class anti-corrosion property, it is widely used in mine
sieving industries as sieving screen. The low carbon steel wire for
making of hot-dipped welded wire mesh offers flexibility that can
be made in many further fabrication applications.
5.Specification:
| Specification List of Welded Wire Mesh |
| Opening | Wire Diameter<BWG> |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available
at request. |
Digital Controlled Machines & Well-Trained Staff:
Our digital controlled welding machines and our well-trained
workers ensure the level and flat mesh with sturdy structure, which
ensure the welded wire mesh products from our factory are the best
available in China.
Zinc Coating Line:
We have Hot Dip Galvanizing Line for welded wire mesh in rolls and Hot Dip Galvanizing Tank for welded wire mesh panels.
By using 99.0% pure zinc, the procedure of hot dip galvanizing
after welding makes the welds is completely protected from the
abusive environment, and moreover, it makes the welds stronger
Features of welded wire mesh:
1> made of high quality steel wire.
2> various configurations and sizes.
3> used for the loose strata to avoid falling rocks.
4> suitable for shotcrete applications.
5> range of sizes to suit roadway width and bolting patterns.
6> easy installation
7> available in black or hot dip galvanized
8> size of wire aperture: 50x50mm,100x100mm,150x150mm,200x200mm,
or according to customer request.
9> Max length:6mm
10> width:1200mm,1700mm,2400mm, or according to customer
request.
11> diameter of steel wire:3.15mm,4mm,5mm,6mm. or according to
customer request

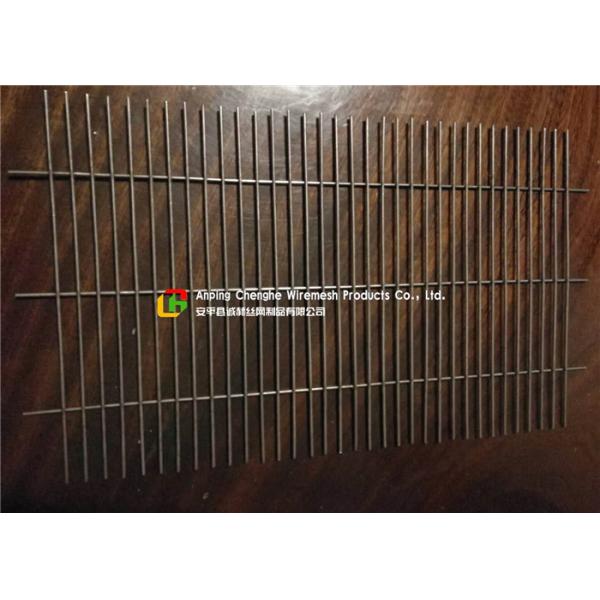

Materail Picture
